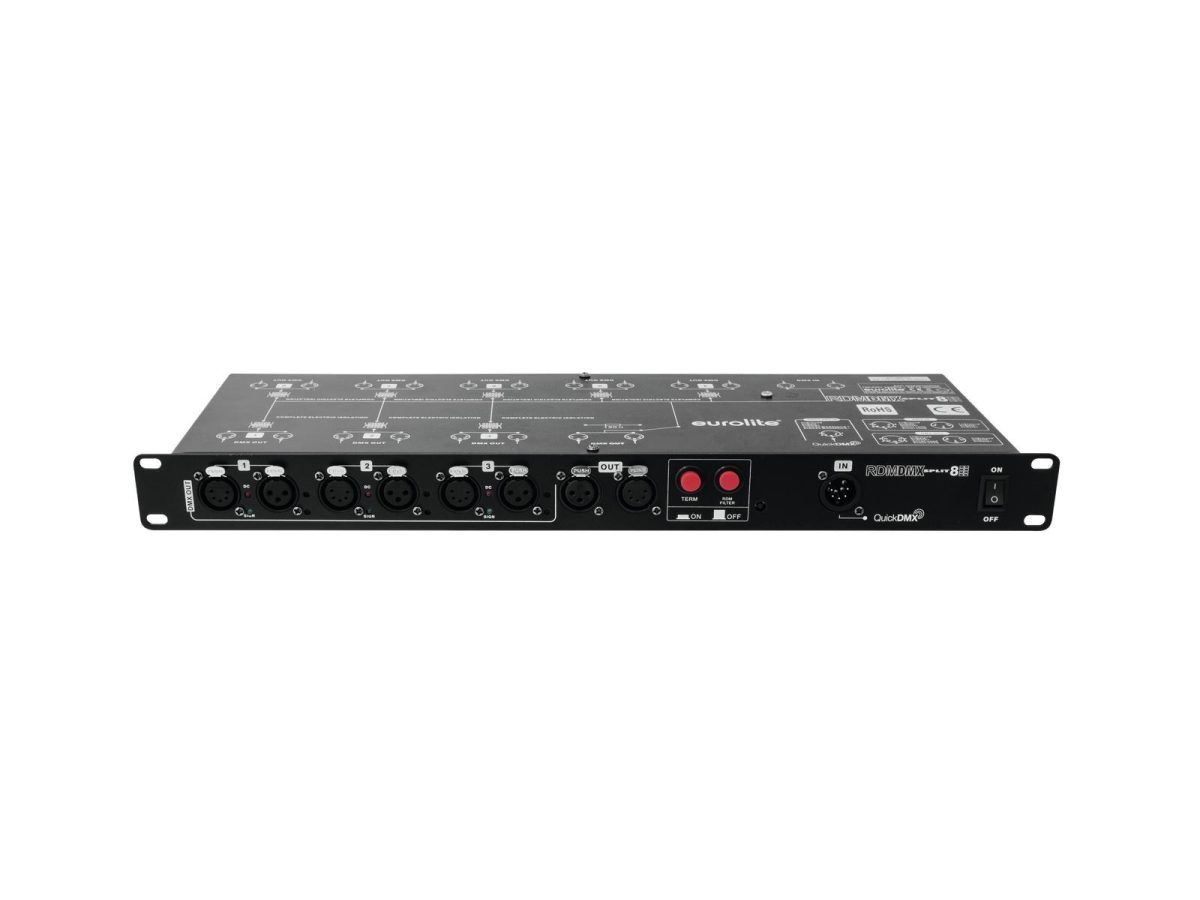

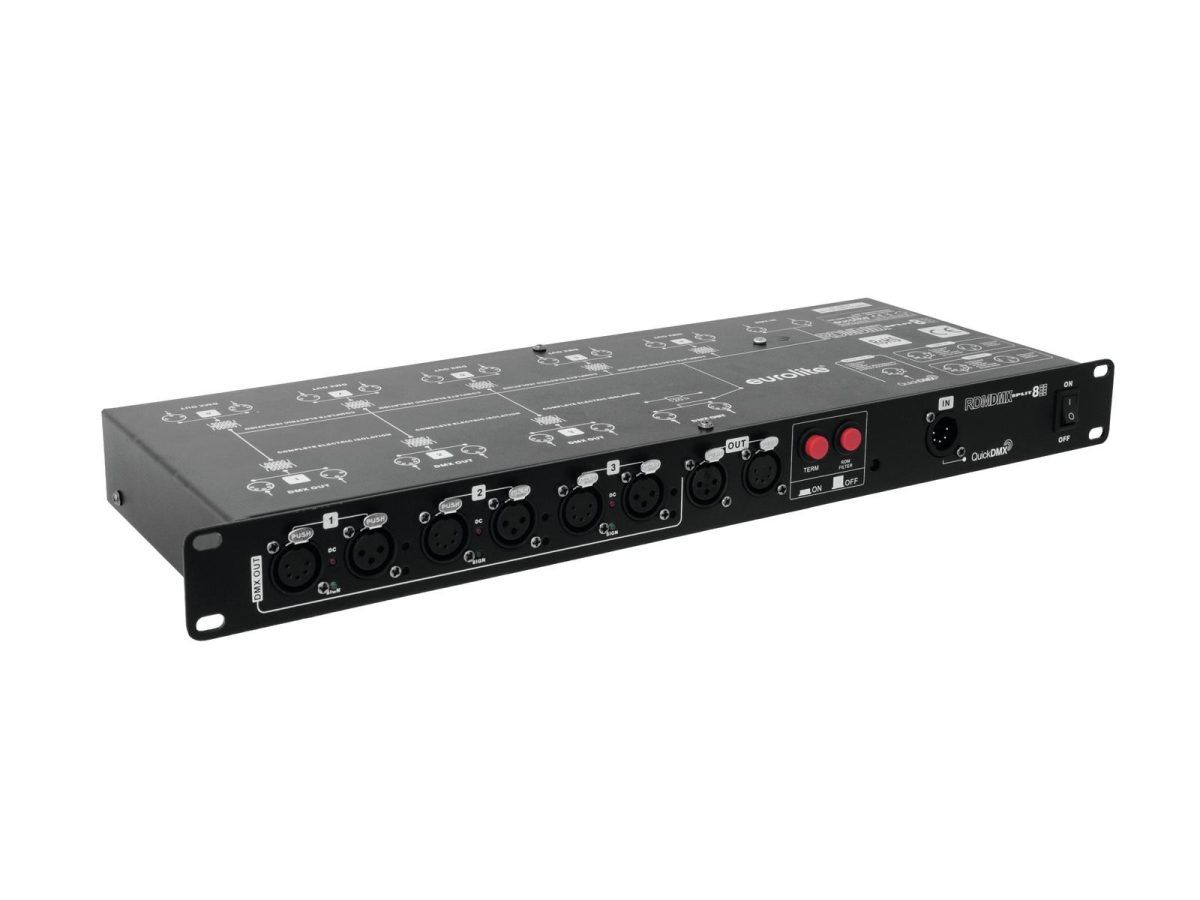

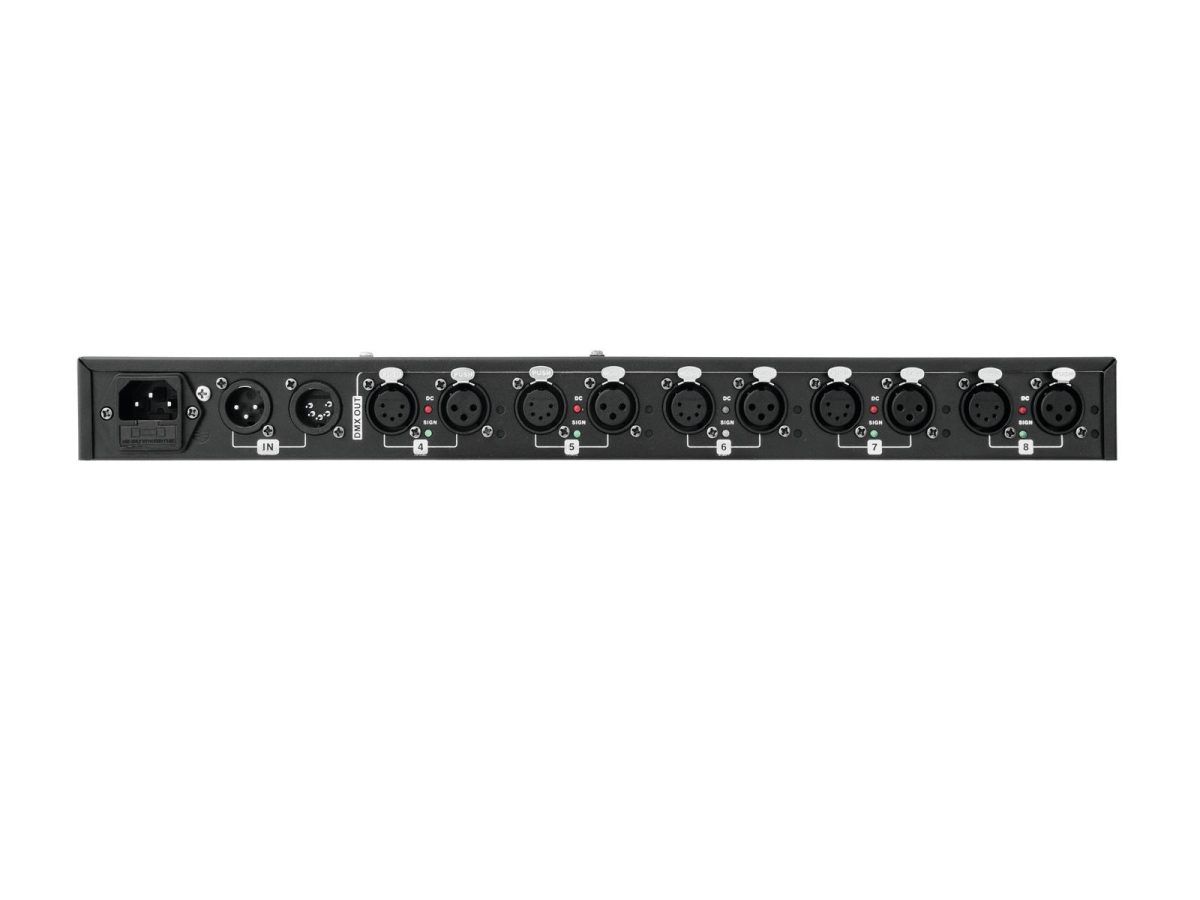

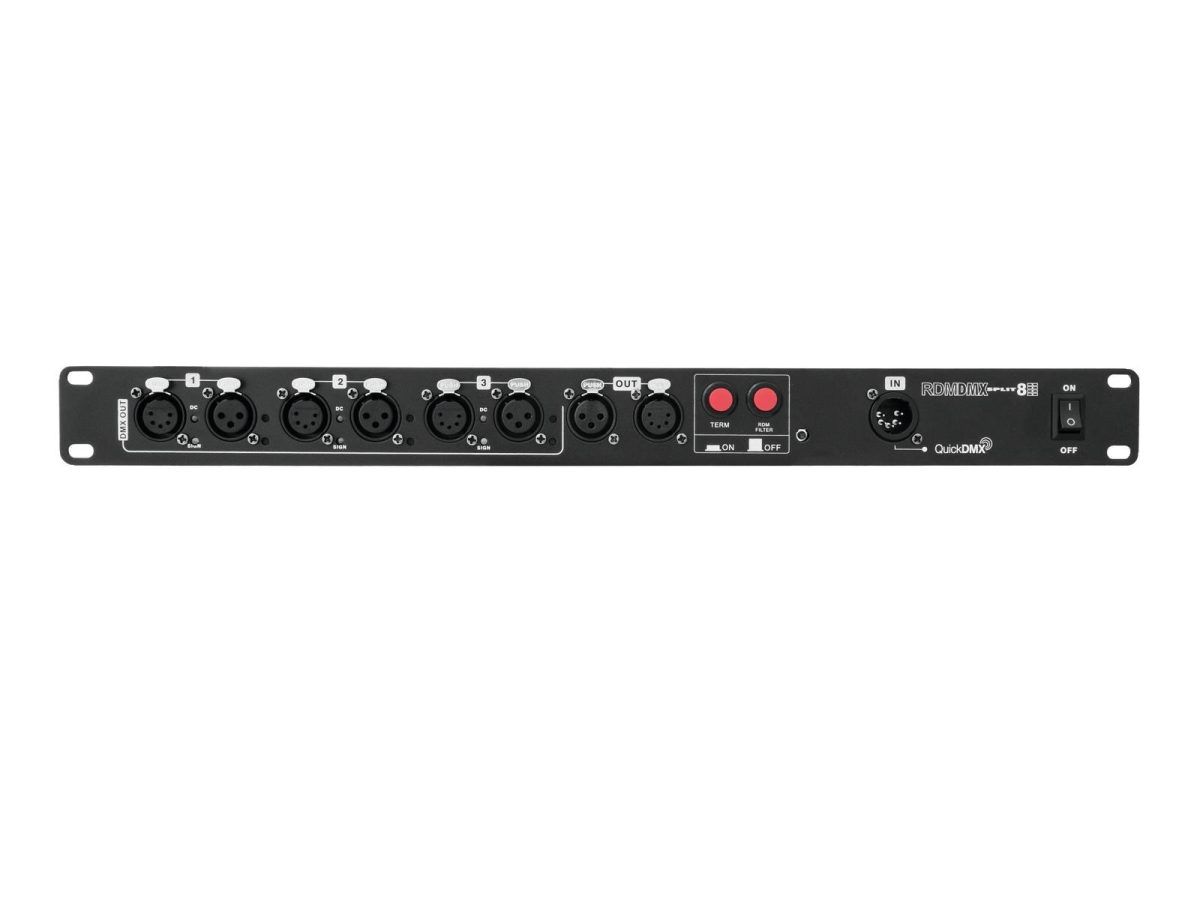

EUROLITE DMX Split 8X RDM Splitter – 8x DMX elosztó RDM támogatással

EUROLITE DMX Split 8X RDM Splitter – 8x DMX elosztó RDM támogatással

72.890 Ft bruttó / db

Rendelhető

Cikkszám: 70064826 Kategória:
Powered by Google Translate
English English Magyar Magyar

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets

  • DMX splitter for splitting one DMX input signal to 8 DMX outputs
  • Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output
  • Additional QuickDMX input for wireless reception of DMX signals
  • Supports RDM for bidirectional communication over the DMX line
  • Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
  • Input and outputs XLR 3-pin and 5-pin each
  • Input and outputs galvanically isolated
  • Each DMX output with independent driver and status indicators
  • Input and outputs with a set of respective power supply and internal fuse
  • Switchable termination resistor
  • Rack mounting
Power supply:100-240 V AC, 50/60 Hz
DMX connection:3-pin and 5-pin XLR
QuickDMX connection:5-pin XLR
Dimensions (L x W x H):483 x 145 x 45 mm
Weight:2,5 kg
Power consumption:5 W
Height:4,45 cm
Depths:14,5 cm
Width:48,3 cm
Tömeg2.7500 kg
Méretek0.1100 x 0.5300 x 0.2200 m
