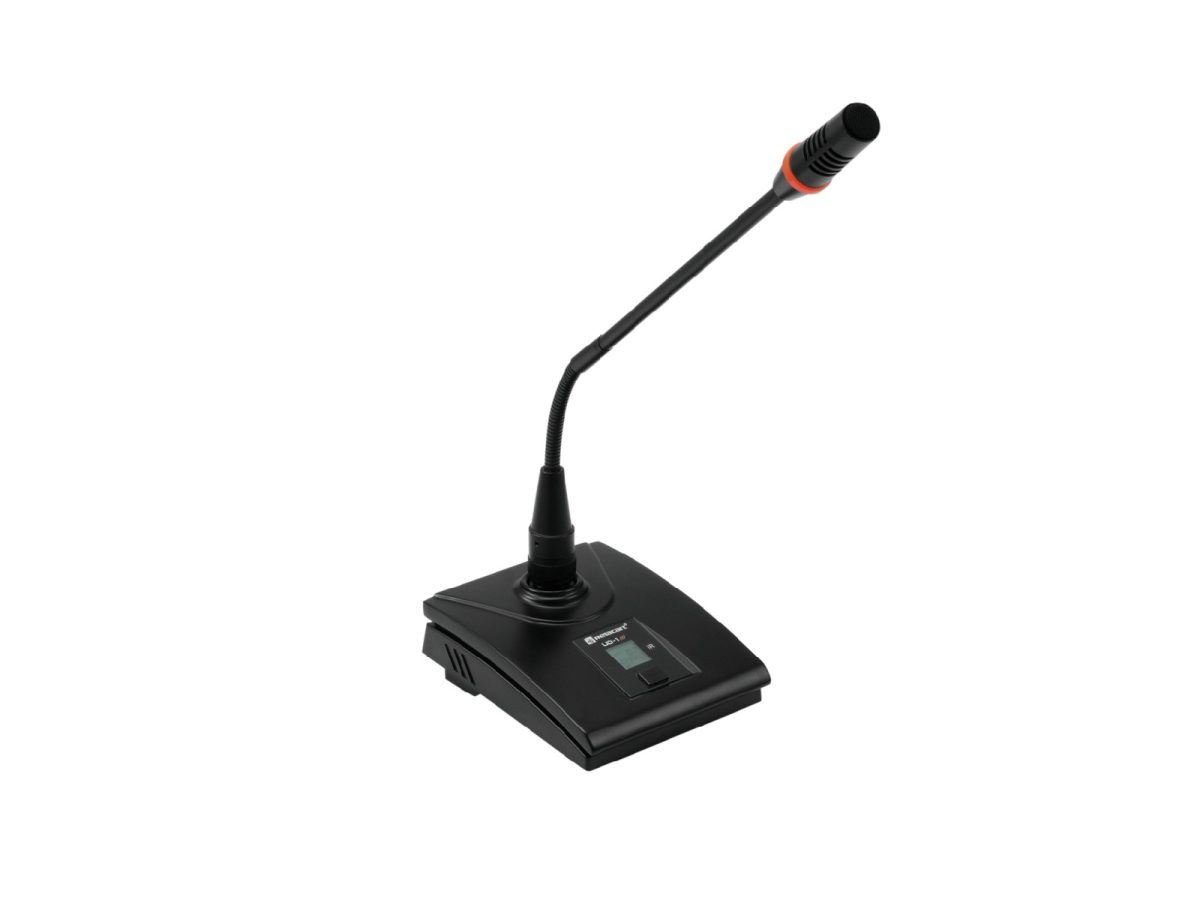

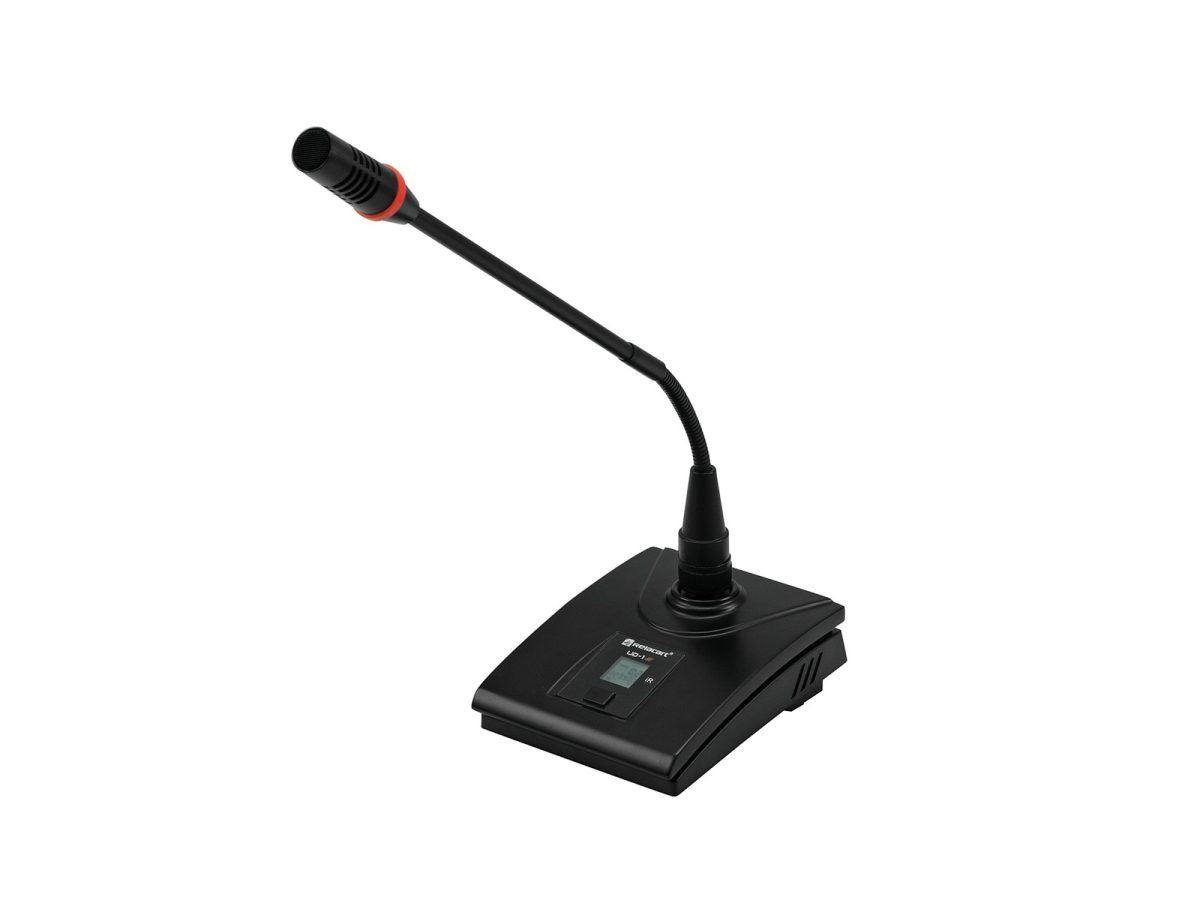

RELACART UD-1 UHF Gooseneck Microphone for WAM-402 - mikrofon rendszerhez

RELACART UD-1 UHF Gooseneck Microphone for WAM-402 – mikrofon rendszerhez

49.190 Ft bruttó / db

Rendelhető

Cikkszám: 13055227 Kategóriák: ,
Powered by Google Translate
English English Magyar Magyar

UHF gooseneck microphone for model WAM-402, 823-832 + 863-865 MHz

  • Gooseneck microphone with UHF pilot tone technology (PLL)
  • 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
  • Parallel operation of up to 9 transmitters is possible without any interference
  • Suitable for the WAM-402 automatic mixer
  • Infrared interface for easy and error-free synchronization with the receiver via infrared signal
  • Operation range with line of sight approx. 60 meters
  • LCD for battery status, frequency and channel
  • Gain control and low cut switch
  • Durable metal diecast housing
  • Operation via 2 x 1.5 V batteries (type AA), not included
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
  • Power connection: Battery/battery pack (not included)
Type:Electret gooseneck microphone
Carrier frequency:UHF 823-832 and 829-832 MHz
Switching bandwidth:11 MHz
Deviation:±45 kHz
Modulation:FM
Frequency stability:±0.0005 %
RF power output:10 mW
Coverage:60 m (with line-of-sight)
Power supply:2 x 1.5 V battery, type AA
Current consumption:approx. 140 mA
Battery life:approx. 10 hours
Dimensions:485 x 140 x 115 mm
Weight:0.6 kg
Frequency band:UHF 823 – 832 MHz; UHF 863 – 865 MHz
Weight:0,83 kg
Power connection:Battery/battery pack
Width:11,5 cm
Depth:14 cm
Height:48,5 cm
Tömeg1.3000 kg
Méretek0.4500 × 0.1200 × 0.1400 m
